PRINOTH PANTHER T6
| Make | PRINOTH |
| Model | PANTHER T6 |
| Type | All Tracked Vehicles |
How can we help?
Description

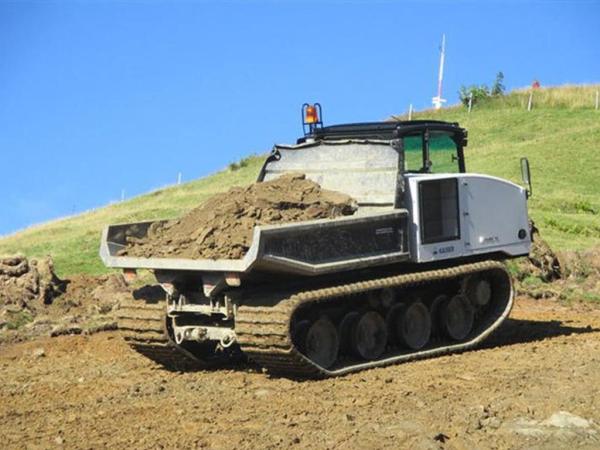

PRINOTH TRACKED VEHICLES — PANTHER T6
The PANTHER T6 low ground pressure tracked vehicle operates efficiently, reliably and cost-effectively in unimaginable off-road & weather conditions. With its truck-style chassis, this rubber tracked crawler carrier is compatible with virtually all implements, without modifications. The PANTHER T6 delivers exceptional performance, speed and versatility in a wide range of sectors such as mining, construction, oil and gas, and electric utility.
One of the unique aspects of this type of soundly engineered vehicle is the advantage of extremely low ground pressure. PRINOTH vehicles offer optimal contact with the terrain, yet only gently touch the ground. This means that you and your crew can access hard-to-reach work sites while enjoying a smooth ride.
Combined with remarkable off-road capability, PRINOTH offers low emissions and sustainability; its vehicles also boast efficiency, excellent performance, and a long service life.
Narrow width allows the PANTHER T6, T7R, T8, T12 and T14R to fit on regular-sized transportation decks, eliminating additional transport costs. The PANTHER is the only vehicle in its category that can be shipped in a high-cube container.
ADVANTAGES
HIGHEST PAYLOAD
Although it may tread softly, the PANTHER carries from 5,450 kg (12,000 lbs) to 20,865 kg (46,000 lbs); the highest payload in its class.
OFF-ROAD CAPABILITIES
The PANTHER’s distinctive large wheel tandem suspension undercarriage provides unparalleled off-road mobility while the elevated engine position provides greater fording depth.
UNIQUE UNDERCARRIAGE SYSTEM
A walking beam suspension, producing high suspension travel, easily adapts to uneven terrain while providing a safe & comfortable ride.
FOR EVERY SITUATION, IN ANY WEATHER
A unique undercarriage featuring large torque are your guarantee to unsurpassed performance.
ALL-TERRAIN RELIABILITY

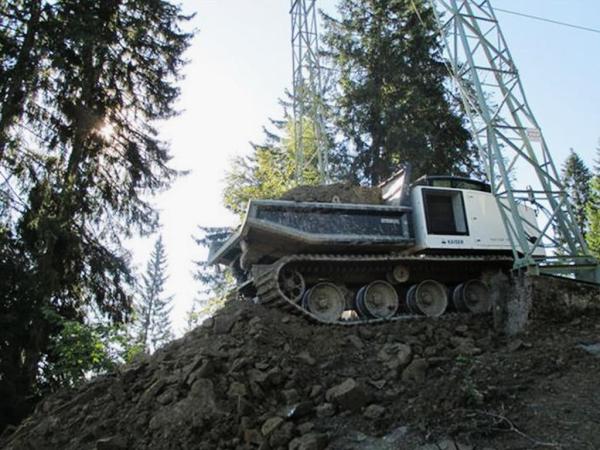

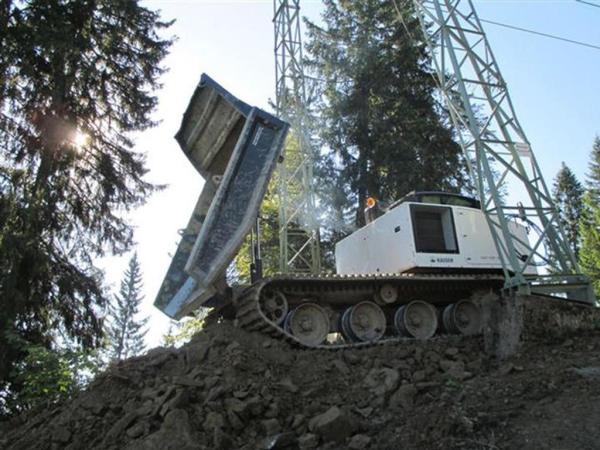

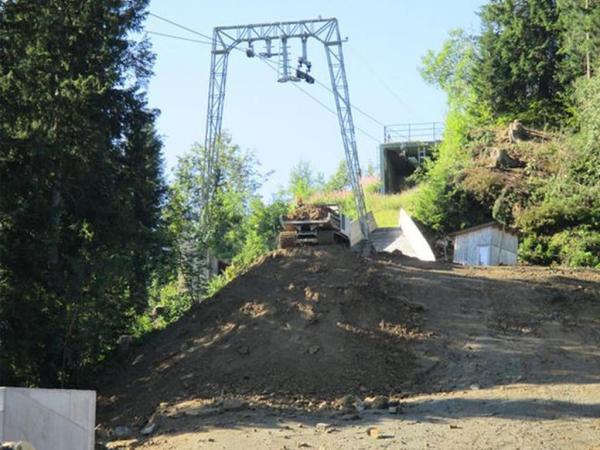

While carrying the biggest payload in the industry, the PRINOTH PANTHER can reach your work site in any terrain: water, rocks, steep hills, swamps or even deep mud. The overall design allows the PANTHER to reach fording depths of up to 1,300 mm (51 in). You can trust your PANTHER to perform at any angle and in any situation.
ROPS & FOPS SAFETY CERTIFICATIONS
Superior cab design comes with a ROPS (Roll Over Protective Structure) certification complying with ISO-3471 standard and optional FOPS (Falling Object Protective Structure) certification complying with ISO-3449 standard.
EASE OF OPERATION
The steering wheel and pedal combination provide intuitive controls and minimal training for new operators.
SPEED AND ON-ROAD MOBILITY
With its pavement-friendly rubber tracks and remarkable speed, the PANTHER promptly gets you from one work site to another.
APPLICATION AREAS

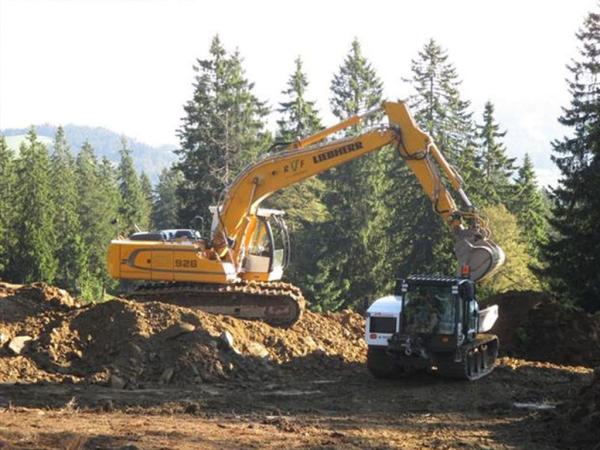

• Construction & Mining
• Oil & Gas, Pipelines

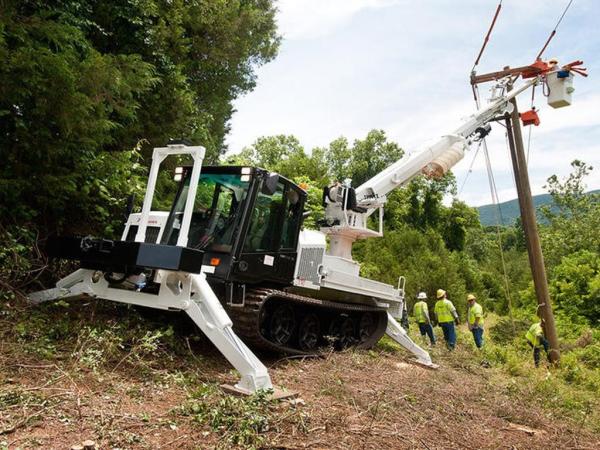

• Electric Utility & Wind Power
OTHER APPLICATIONS

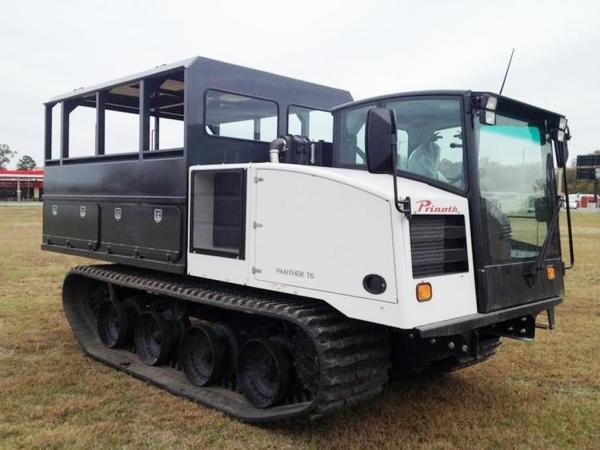

• Forestry, emergency, military, personnel transport, etc.
• Practical travel over flooded or wiped-out roads
• Zero turn radius for maximum mobility
• Various cabin configurations & implement possibilities
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- ropstype: Enclosed
- TECHNICAL DATA - :
- TECHNICAL DATA - Cab Configuration: Spacious wide cab – 1 person / Option: Narrow cab – 1 person
- TECHNICAL DATA - Engine Type / Emission Standard: Caterpillar C4.4 Turbo diesel / EPA Tier 4 Final / EU Stage V
- TECHNICAL DATA - Gradeability - Uphill & Downhill / Sidehill: 60% (31°) / 40% (21.8°)
- TECHNICAL DATA - Ground Pressure - Vehicle Only: 18.62 kPa (2.70 psi)
- TECHNICAL DATA - Maximum Speed: 15 km/h (9.3 mph)
- TECHNICAL DATA - Operating Weight - Unloaded Dump Body : 8,479 kg (18,693 lb)
- TECHNICAL DATA - Overall Dimensions - mm (inches): Width: 2,413 (95) / Length: 4,917 (193.6) / Height: 2,551 (100.4)
- TECHNICAL DATA - Payload Bare Chassis : 6,985 kg (15,400 lb)
- TECHNICAL DATA - Payload Dump Body: 5,715 kg (12,600 lb)
- TECHNICAL DATA - Power @ 2200 rpm / Torque @ 1400 rpm: 110 kw (147 HP)
- TECHNICAL DATA - Track Type: Metal-embedded rubber track 700 mm (27.6 in)
