PRINOTH TRACKED VEHICLES — PANTHER T16
YOUR TRACKED CARRIER WITH 15,195 KG (33,500 LB) PAYLOAD CAPACITY

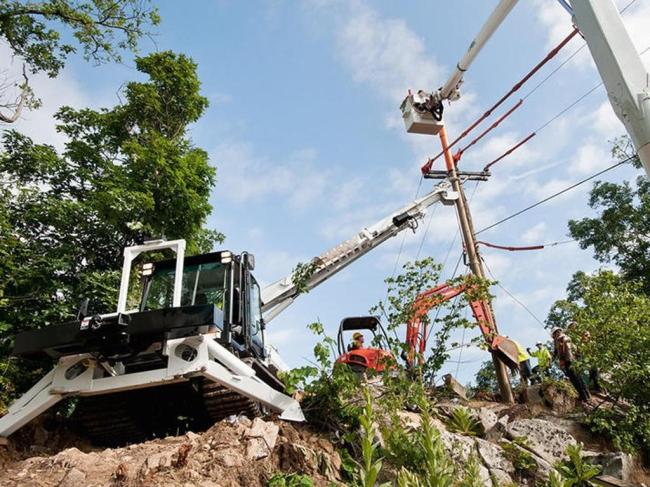

The PANTHER T16 tracked carrier vehicle hauls digger derricks, aerial devices, cranes, drills, and more into the most challenging terrain where ground conditions prohibit the use of a wheeled vehicle. Operators can more easily complete work on rugged terrain as well as in locations that demand low ground pressure and traction. Equipped with the latest microcontroller technology, that monitors everything from oil pressure and vehicle parameters to outside air temperature, the PANTHER T16 is a reliable work tool backed by a powerful Tier 4 Final engine and enhanced safety features.
PANTHER T16 DUMP BODY RUBBER TRACKS
The T16 dump body version is available with a dump box or a flatbed option on rubber tracks, boasting 15,195 kg (33,500 lb) of bulk load material payload. Its dump box is lined with Hardox® steel, making it extra sturdy to get the job done. With a maximum speed of 13 km/h (8 mph), this PANTHER model is sure to increase productivity, regardless of the project. 225 kW (300 HP) / 1,274 N·m (939 lb·ft).
PANTHER T16 IMPLEMENT-READY ON D-DENT TRACKS

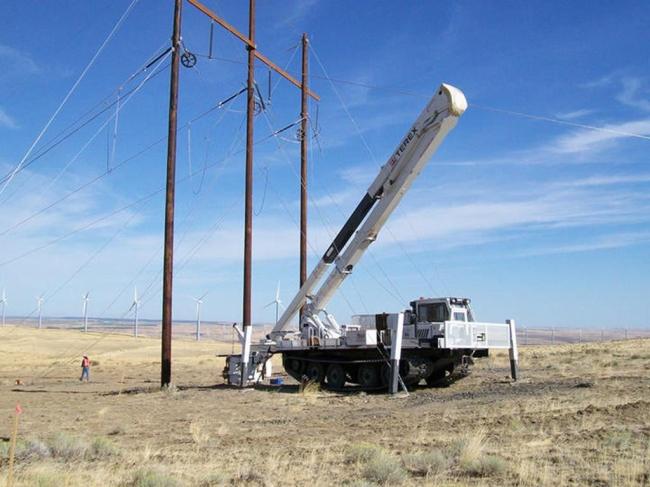

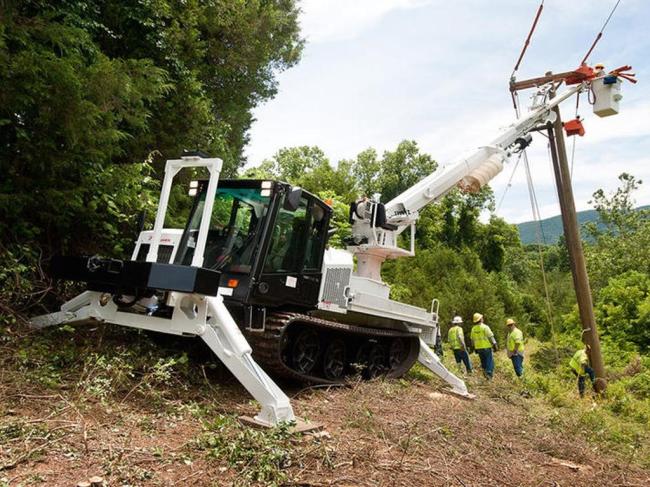

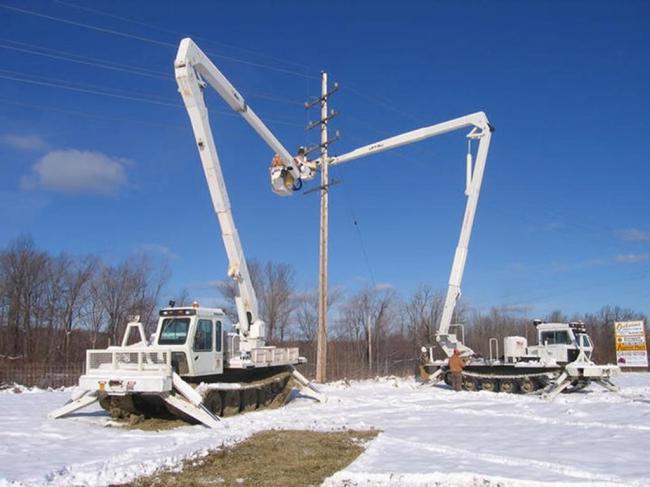

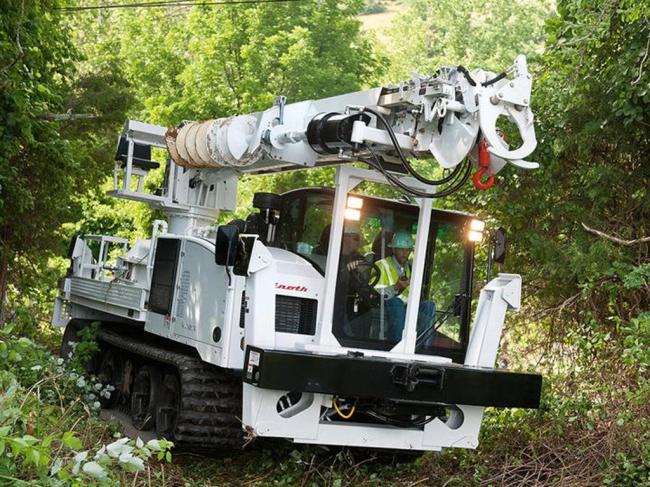

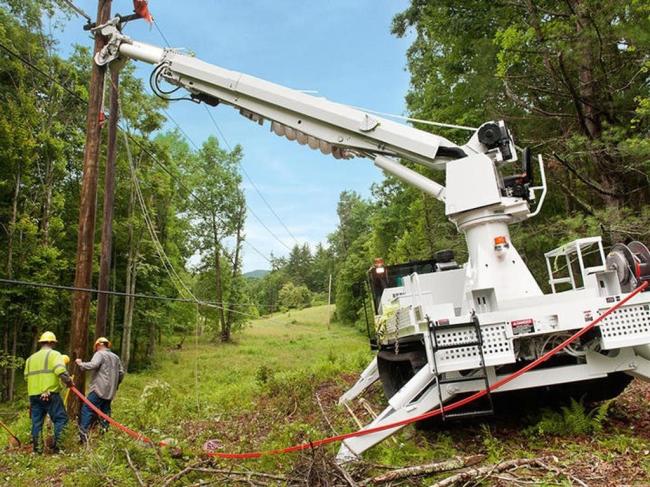

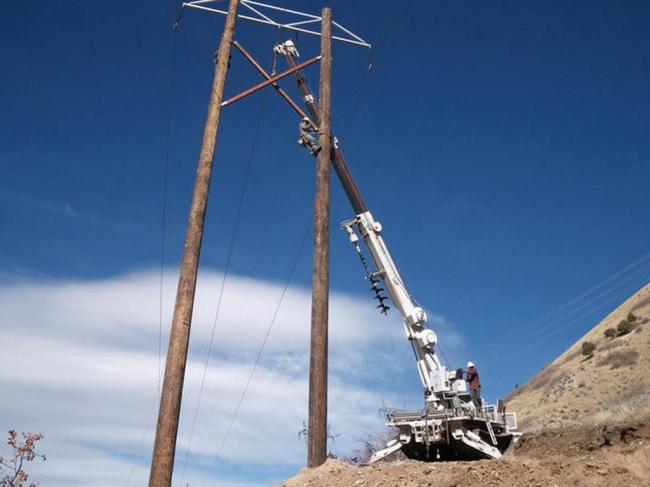

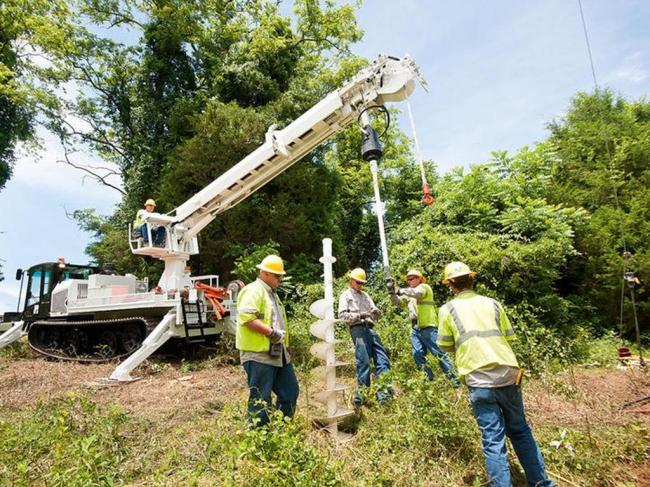

The PANTHER T16 crawler carrier with a GVWR of 30,708 kg (67,700 lb) can carry digger derricks, aerial devices, cranes, drills, and more into the most challenging of terrains. The PANTHER T16 tracked carrier is widely used as a tool carrier (digger derricks, aerial devices, cranes, various drills) where ground conditions prohibit the use of a wheeled vehicle. It will allow the operator to complete the work on rugged terrain while exerting very low ground pressure. Equipped with the latest microcontroller technology that optimizes fuel consumption by managing engine throttle and hydrostatic transmission parameters, the PANTHER T16 is a reliable work tool backed by a powerful Tier 4 Final engine and enhanced safety features.
More specifically, this version offers the RAD chassis, which stands for Rapid Attach Design, and is a unique innovation that increases productivity for our customers in the power and utility sector by helping save hundreds of hours with their equipment installation. The design was created in collaboration with implement OEMs to minimize their challenges of sub-base assembly to a tracked vehicle and proves to be even more rigid from a torsion perspective.
Offering high payload combined to a high-speed capacity, the PANTHER T16 is the fastest vehicle in its class.
Overall, the payload capacity on this unit allows to install bigger implements on a smaller vehicle thus granting PRINOTH with a clear advantage.
PANTHER T16 IMPLEMENT-READY RUBBER TRACKS
The PANTHER T16 crawler carrier in the implement-ready on rubber tracks version has a GVWR of 34,019 kg (75,000 lb). Like the traditional D-dent version, it can carry many different types of equipment and is suited for the most challenging of terrains and the rubber track option allows more versatility when crossing or traveling on roads- as well as being gentler on shop floors when up-fitting or maintaining the vehicles.
The T16 undercarriage was completely redesigned for the rubber track option to provide a sturdy undercarriage composed of five large wheels with both a tandem and a tridem suspension. PRINOTH’s patented tridem allows uniform distribution of the load over the rubber track while offering the same legendary suspension travel typical to all PANTHER models. The undercarriage is optimized by the automatic, hydraulically controlled track tensioning system allowing to achieve the ideal track tension. This prolongs the track’s life and allows for less maintenance and down time. The endless rubber track on the PANTHER T16 has the same unique zigzag-patterned design which increases off-road mobility, providing outstanding traction and side-hill grip.
PANTHER T16 ADVANTAGES
HIGHEST PAYLOAD
Although it may tread softly, the PANTHER carries from 5,450 kg (12,000 lbs) to 20,865 kg (46,000 lbs); the highest payload in its class.
EASE OF TRANSPORT Narrow width allows the PANTHER T6, T7R, T8, T12 and T14R to fit on regular-sized transportation decks, eliminating additional transport costs. The PANTHER is the only vehicle in its category that can be shipped in a high-cube container.
OFF-ROAD CAPABILITIES
The PANTHER’s distinctive large wheel tandem suspension undercarriage provides unparalleled off-road mobility while the elevated engine position provides greater fording depth.
UNIQUE UNDERCARRIAGE SYSTEM
A walking beam suspension, producing high suspension travel, easily adapts to uneven terrain while providing a safe & comfortable ride.
FOR EVERY SITUATION, IN ANY WEATHER
A unique undercarriage featuring large torque are your guarantee to unsurpassed performance.
ALL-TERRAIN RELIABILITY
While carrying the biggest payload in the industry, the PRINOTH PANTHER can reach your work site in any terrain: water, rocks, steep hills, swamps or even deep mud. The overall design allows the PANTHER to reach fording depths of up to 1,300 mm (51 in). You can trust your PANTHER to perform at any angle and in any situation.
PEACE OF MIND THANKS TO TRUSTWORTHY TECHNOLOGY
With clever safety features including an automatic hill braking system and an outrigger interlock safety system, PANTHER stands for confidence and performance. The display shows everything from oil pressure and vehicle parameters to outside air temperature. PANTHER vehicles are not only carefully designed to simplify every aspect of ownership, they are also manufactured and assembled by hand, right down to the last bolt, for unparalleled quality. To ensure worry-free operation in the field, each vehicle is subject to rigorous safety and performance testing at our world-class facility.
YOUR VERY OWN CAB CONFIGURATION
Available in narrow or wide configuration (PANTHER T6 and PANTHER T8), the cab offers optimal comfort for longer, more productive work shifts. Plus, the 2nd seat option eliminates the need for a crew vehicle.
APPLICATION AREAS
• Construction & Mining
• Oil & Gas, Pipelines
• Electric Utility & Wind Power
OTHER APPLICATIONS
• Forestry, emergency, military, personnel transport, etc.

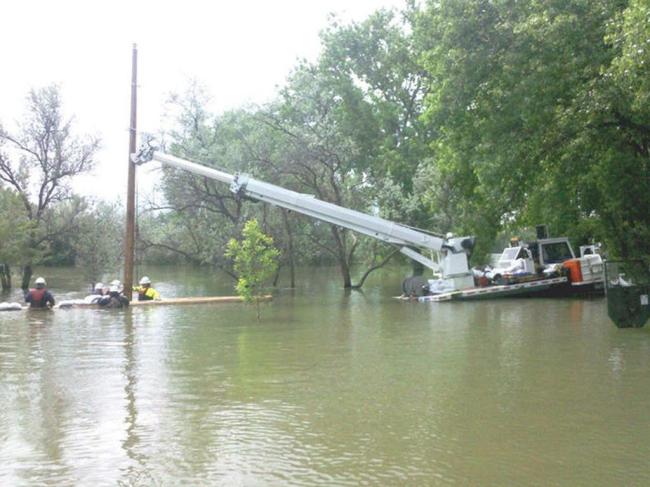

• Practical travel over flooded or wiped-out roads
• Zero turn radius for maximum mobility
• Various cabin configurations & implement possibilities
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
