Vogele SB 350
| Make | Vogele |
| Model | SB 350 |
| Type | Fixed-Width Screeds |
How can we help?
Description
The most powerful screed in the VÖGELE product range

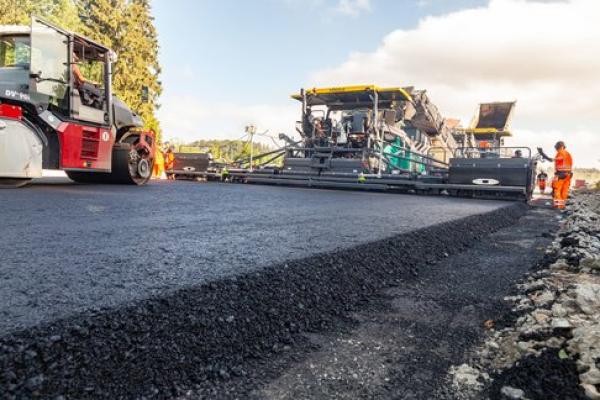

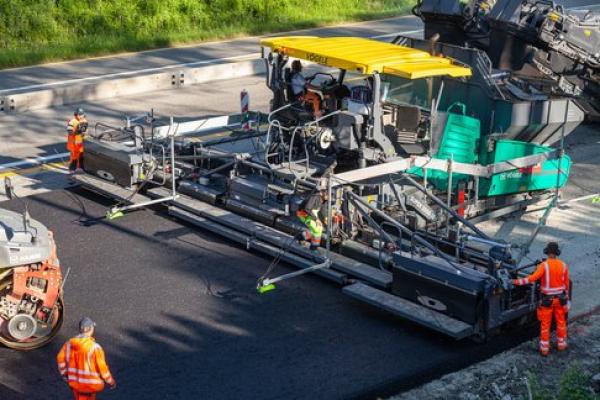

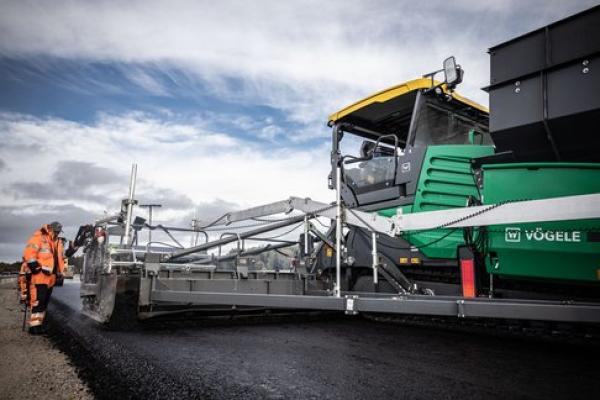

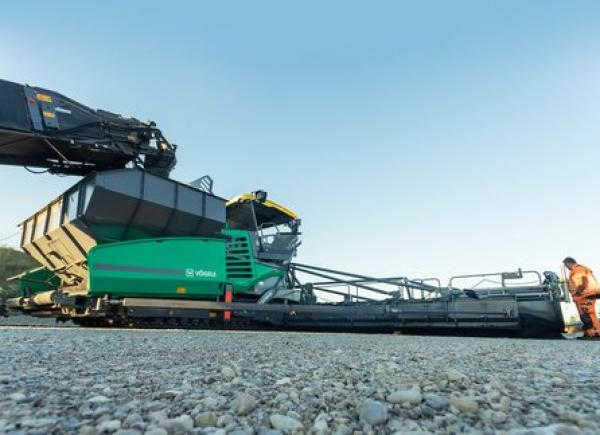

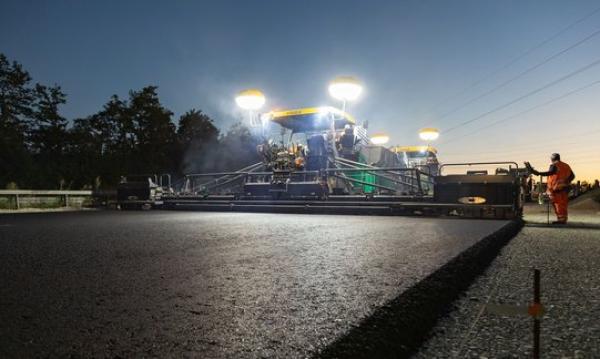

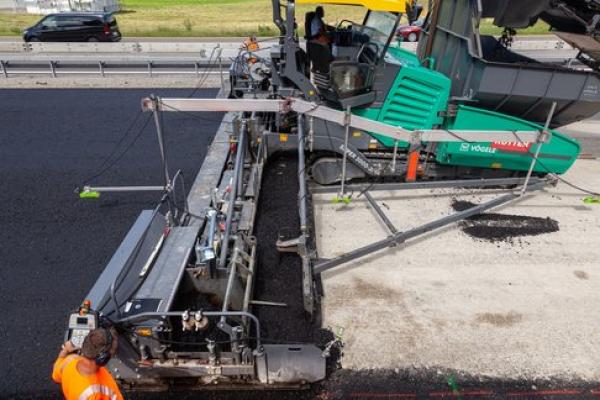

Fixed-width screeds from VÖGELE deliver absolutely high-quality, perfectly even results. Their strengths come to the fore when laying down asphalt across pave large widths and thick base courses. The SB 350 Fixed-Width Screed was specially designed for the SUPER 3000-3(i). They offer a wide range of applications, covering pave widths of 3.5m to 18m and layer thicknesses of up to 50cm.
Models
Manufacturing Technology
VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.
Compaction technology
VÖGELE sets the benchmark with products that deliver a phenomenal degree of precompaction in the paving process. Cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high-compaction system with tamper and pressure bars.
High-compaction technology
The pressure bars driven by pulsed-flow hydraulics are the core of VÖGELE high-compaction technology. By combining screed versions TP1, TP2 and TP2 Plus with this unique technology, our pavers achieve maximum compaction values. Compaction performances of over 98% can be achieved with VÖGELE’s unique high-compaction technology – without rolling.
Heating System
VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.
Specifications
- COMPACTING SYSTEMS - Compacting systems: TV, TP1, TP2
- COMPACTING SYSTEMS - Frequency (max.): 50 Hz
- COMPACTING SYSTEMS - Hydraulic oil pressure (max.): 1,740 psi
- COMPACTING SYSTEMS - Pressure bar drive (P): pulsed hydraulic
- COMPACTING SYSTEMS - Pressure bar pulse frequency (P) (max.): 68 Hz
- COMPACTING SYSTEMS - Speed (max.): 1,800 rpm
- COMPACTING SYSTEMS - Stroke, optional hydraulic (TV, TP1, TP2): 0.16 in, 0.31 in
- COMPACTING SYSTEMS - Stroke, standard (TV, TP1, TP2): 0.08 in, 0.16 in, 0.28 in
- COMPACTING SYSTEMS - Vibrators (V): eccentric vibrators
- DIMENSIONS AND WEIGHTS - Depth (in transport position): Screed Depth SB 350 4 ft 5 in
- DIMENSIONS AND WEIGHTS - Weight of basic screed: Screed Weight SB 350 TV 5,510 lbs SB 350 TP1 6,060 lbs SB 350 TP2 6,390 lbs
- DIMENSIONS AND WEIGHTS - Width (without end gate): 11 ft 6 in
- PAVING WIDTHS - Bolt-on extensions, hydraulically adjustable: 4 ft 1 in
- PAVING WIDTHS - Length: Bolt-on extensions 10 in 20 in 39 in 59 in
- PAVING WIDTHS - Maximum paving width: 59 ft 1 in
- PROFILE SETTINGS - Crown adjustment: -2 % to 3 %
- PROFILE SETTINGS - Version: mechanical
- SCREED HEATING - Control: fully automatic, thermostat-controlled
- SCREED HEATING - Heating rods: on screed plates and in tamper bars and pressure bars
- SCREED HEATING - Optional screed heating: function monitoring of each individual heating rod
- SCREED HEATING - Output generation: three-phase AC generator
