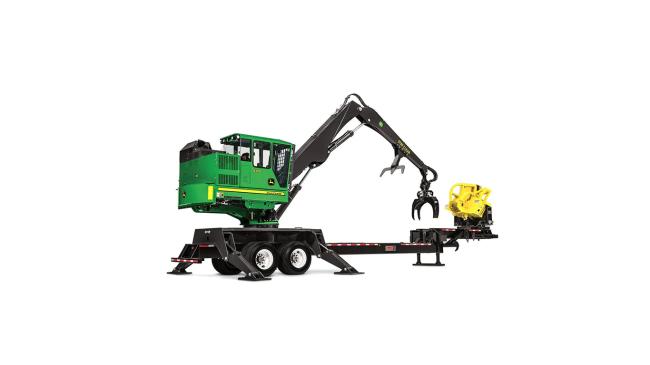

John Deere 437E Knuckleboom Loader
Knuckleboom Loaders
How can we help?
(562) 272-7400
Features
-
Operating Weight: 15 909 kg (35,073 lb.)
-
Reach: 9754 mm (32 ft. 0 in.)
-
Lift Capacity: 11,730 kg (25,860 lb.)
-
Engine Power: 129 kW (173 hp) at 2,000 rpm
-
Swing Torque: 52,032 Nm (38,400 lb.-ft.)
Specifications
CAPACITIES - Alternator Output, Amp: |
120 |
CAPACITIES - Fuel Tank, ltr (gallons (US)): |
340 (90) |
CAPACITIES - Hydraulic Tank, ltr (gallons (US)): |
151 (40) |
DIMENSIONS - Base Carrier Length, m (ft/in): |
3.81 (12 ft 6 in) |
DIMENSIONS - Boom Horizontal Reach, m (ft/in): |
9.754 (32 ft ) |
DIMENSIONS - Height Over Cab, mm (ft/in): |
4112 (13 ft 6 in) |
DIMENSIONS - Slewing Angle, °: |
360 |
DIMENSIONS - Stabilizer Footprint Length, m (ft/in): |
3.81 (12 ft 6 in) |
DIMENSIONS - Superstructure Width, mm (ft/in): |
2606 (8 ft 7 in) |
DRIVELINE - Displacement, ltr (Inches³): |
6.8 (415) |
DRIVELINE - Emission Rating: |
Tier 4 |
DRIVELINE - Engine Manufacturer : |
John Deere |
DRIVELINE - Engine Model: |
6068 HTJ57 PowerTech PVS |
DRIVELINE - Engine Output - Gross, kW (hp): |
129 (173) |
DRIVELINE - Engine Output - Net, kW (hp): |
119 (159) |
DRIVELINE - Engine Torque, Nm (lbf / ft): |
722 (532.5) |
DRIVELINE - Rated Speed, rpm: |
2000 |
DRIVELINE - Torque Rise, %: |
17 |
PERFORMANCE - 10ft lift @ 10ft radius, kg (lbs): |
8980 (19798) |
PERFORMANCE - 10ft lift @ 15ft radius, kg (lbs): |
10500 (23149) |
PERFORMANCE - 10ft lift @ 20ft radius, kg (lbs): |
8160 (17990) |
PERFORMANCE - 10ft lift @ 25ft radius, kg (lbs): |
6780 (14947) |
PERFORMANCE - 10ft lift @ 30ft radius, kg (lbs): |
5710 (12588) |
PERFORMANCE - 5ft lift @ 10ft radius, kg (lbs): |
6180 (13625) |
PERFORMANCE - 5ft lift @ 15ft radius, kg (lbs): |
11730 (25860) |
PERFORMANCE - 5ft lift @ 20ft radius, kg (lbs): |
8690 (19158) |
PERFORMANCE - 5ft lift @ 25ft radius, kg (lbs): |
6950 (15322) |
PERFORMANCE - 5ft lift @ 30ft radius, kg (lbs): |
5570 (12280) |
PERFORMANCE - Pump: |
Axial Piston |
PERFORMANCE - Slew Speed, rpm: |
10 |
PERFORMANCE - System Voltage, V: |
12 |
WEIGHTS - Operating Weight, kg (lbs): |
15909 (35073) |
Final Tier 4 Diesel Engine
The 6068 HTJ57, 6-cylinder, turbocharged diesel engine provides all the power you need to keep loading, day after day.
Productivity
Increased swing torque compared to previous models.
Easier access to hydraulic components
An improved front grate latch and quick, deck-level access to service points, including easy air conditioner filter access and grease fittings adjacent to the cab doorway, speed daily maintenance.
Increased boom lift force
The E-Series models boast fast boom and swing speeds, as well as streamlined hydraulics. A dedicated swing circuit gives you continuous power for more productive delimbing and loading.
Up to 8% Boost in Fuel Economy
The 6068 HTJ57, 6-cylinder, turbocharged diesel engine provides all the power you need to keep loading, day after day.
