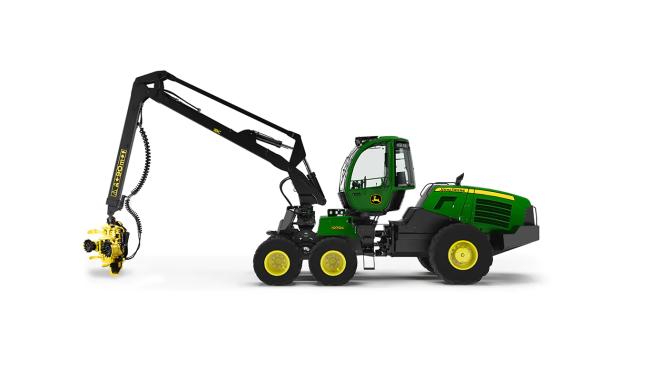

John Deere 1070G Wheeled Harvester
Wheeled Harvesters
How can we help?
(562) 272-7400
Features
-
Boom Reach: 8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 10.8 m (35.5 ft.)
-
Tractive Force: 130 kN (29,200 lb.)
-
Engine Power: 136 kW (182 hp) at 2,000 rpm
-
Work Pump: 160 cm³ (9.7 cu. in.)
Specifications
CAPACITIES - Delimbing Diameter, mm (inches): |
370 (14.6) |
CAPACITIES - Felling Diameter, mm (inches): |
470 (18.5) |
CAPACITIES - Fuel Tank, ltr (gallons (US)): |
300 (79.3) |
CAPACITIES - Hydraulic Tank, ltr (gallons (US)): |
160 (42.3) |
CAPACITIES - Number Of Alternators: |
1 |
CAPACITIES - Pump Capacity, cm³ (Inches³): |
160 (9.7) |
CAPACITIES - Reference Harvesting Head: |
H412 |
CAPACITIES - System Voltage, V: |
24 |
CAPACITIES - Travel Speed, kph (mph): |
24 (14.9) |
DESCRIPTION - Crane Model: |
180S |
DIMENSIONS - Base Carrier Length, mm (inches): |
6990 (275.16) |
DIMENSIONS - Ground Clearance, mm (inches): |
570 (22.4) |
DIMENSIONS - Height Over Cab, mm (inches): |
3730 (146.88) |
DIMENSIONS - Horizontal Reach, m (ft/in): |
8.6 (28 ft 2 in) |
DIMENSIONS - Overall Width, mm (inches): |
2663 (104.88) |
DIMENSIONS - Transport Height, mm (inches): |
3730 (146.88) |
DIMENSIONS - Wheelbase, mm (inches): |
3700 (145.68) |
DRIVELINE - Displacement, ltr (Inches³): |
6.8 (414) |
DRIVELINE - Drive Configuration: |
6 x 6 |
DRIVELINE - Engine Manufacturer : |
John Deere |
DRIVELINE - Engine Model: |
PowerTech Plus 6068 |
DRIVELINE - Engine Output, kW (hp): |
136 (182) |
DRIVELINE - Engine Torque, Nm (lbf / ft): |
850 (627) |
DRIVELINE - Rated Speed, rpm: |
2000 |
DRIVELINE - Transmission Type: |
Hydrostatic-Mechanical |
WEIGHTS - Operating Weight, kg (lbs): |
16000 (35274) |
WEIGHTS - Weight - With Reference Head, kg (lbs): |
16000 (35274) |
Rotating Cab
- Revolutionary rotating cab tracks the boom up to 80 degrees in each direction so the operator can concentrate on the harvester head and the work at hand.
Smart Handling
- Processing Power Control (PPC) lowers operating costs and increases productivity by five to 15 percent by balancing processing power and fuel economy in a variety of logging applications.
Multiple Wheel Configurations Available
- Choose from compact four- or six-wheeled options.
Easy Daily Maintenance
- The electric-motor-powered engine hood is split into two sections and tilts up for fast, easy access to daily checkpoints. For access to internal components, simply swing open the service door.
