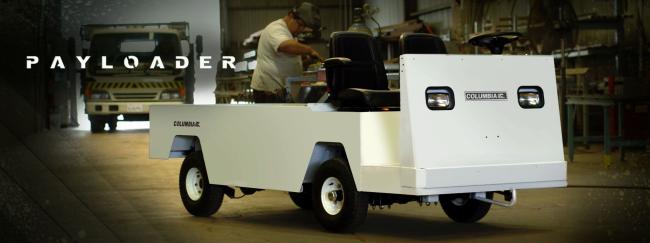

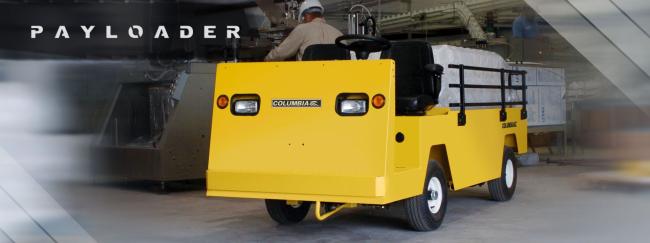

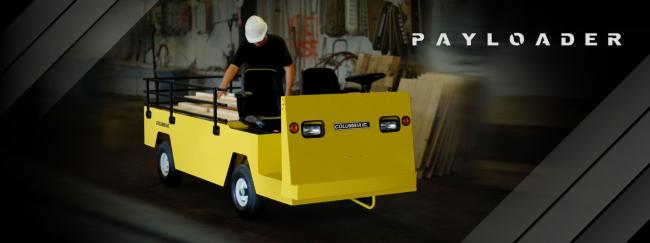

Columbia Payloader

Wheel Loaders

How can we help?

(562) 272-7400

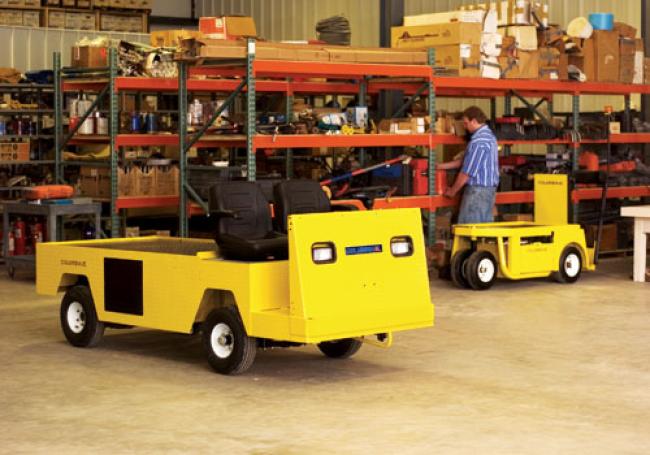

Whether you are carrying light or heavy loads, the maneuverability of the Payloader Series is second to none. Columbia's Payloaders can carry up to 5,200 pounds, tow up to 14,000 pounds and travel up to 17 mph while offering exceptional maneuverability and access to places that larger burden carriers just can't go. We use the same chassis for all our different weight classes which means durability and dependability will not be an issue.

Popular Options Include:

Seat belts
Steel cab with doors
Hour meter
Battery exchange system
Turn signals
Cargo van enclosures
Tire/wheel combinations
Sun canopies
Foldaway 2nd Seat
DC to DC converters
In-motion beeper
Many More...

Popular Options Include:

Seat belts
Steel cab with doors
Hour meter
Battery exchange system
Turn signals
Cargo van enclosures
Tire/wheel combinations
Sun canopies
Foldaway 2nd Seat
DC to DC converters
In-motion beeper
Many More...

Features

12 gauge steel smooth plate body
Front and rear steel bumpers
Great platform for customization
10 gauge steel support sections
Bed Length - 76"
Class H motor insulation
Best in class load capacities
Adjustable bucket seats
Dual head and tail lights

Specifications

Bed:	76" Long Bed
Carry Weight:	2,400-5,200 lbs
Max Speed:	12-14 mph
Passenger Capacity:	Move 2 People
Power System:	48v Electric
Tow Capacity:	6,500-14,000 lbs

ModelTable

Model	Tow Capacity	Carry Weight	Max Speed
Regular Duty BC2	6,500 lbs	2,400 lbs	14 mph
Medium Duty BC3	10,000 lbs	3,200 lbs	13 mph
Heavy Duty BC4	14,000 lbs	5,200 lbs	12 mph

*Note: In order to achieve some specifications, optional equipment may be required.

Features
Features
- 12 gauge steel smooth plate body
- Front and rear steel bumpers
- Great platform for customization
- 10 gauge steel support sections
- Bed Length - 76"
- Class H motor insulation
- Best in class load capacities
- Adjustable bucket seats
- Dual head and tail lights

Specifications

Bed:	76" Long Bed
Carry Weight:	2,400-5,200 lbs
Max Speed:	12-14 mph
Passenger Capacity:	Move 2 People
Power System:	48v Electric
Tow Capacity:	6,500-14,000 lbs

Downloads & Documentation
Links
- Brochure

Details

ModelTable

Model	Tow Capacity	Carry Weight	Max Speed
Regular Duty BC2	6,500 lbs	2,400 lbs	14 mph
Medium Duty BC3	10,000 lbs	3,200 lbs	13 mph
Heavy Duty BC4	14,000 lbs	5,200 lbs	12 mph

*Note: In order to achieve some specifications, optional equipment may be required.
