Wirtgen W150XFI
| Make | Wirtgen |
| Model | W150XFI |
| Type | Compact Milling Machines |
How can we help?
Description

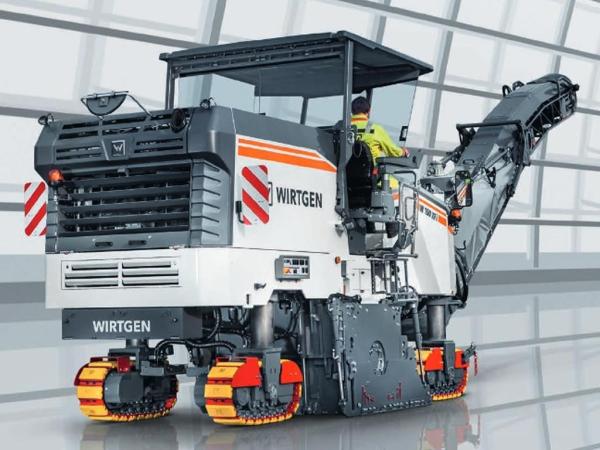

WIRTGEN W150XFi — COMPACT COLD MILLING MACHINES
COMPACT MILLING MACHINES
The highly flexible compact milling machines combine the advantages of the small and large milling machine classes. The maneuverable front-loaders are easy to transport and are ideal for use on confined job sites. These powerful machines can mill off entire asphalt pavements cost-effectively. A wide range of different milling drums is available, greatly extending the possible range of applications so that the milling of individual layers and fine milling operations are also among the everyday tasks of these machines.

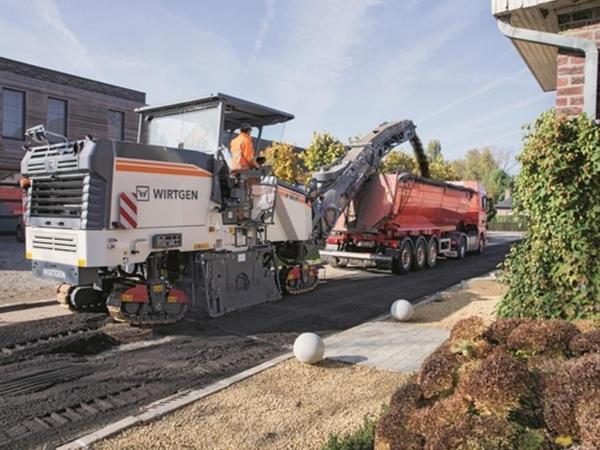

HIGH-PERFORMANCE FRONT LOADER FOR MAJOR CONSTRUCTION PROJECTS IN RESTRICTED SPACE CONDITIONS
• The most powerful cold milling machine in the compact class is the ideal candidate especially for use on major construction sites in restricted space conditions such as in city centers.
• FCS permits the use of different milling drums offering maximum working widths of up to 1.80 m for increased flexibility and machine utilization.
• The machine’s low weight and milling drum unit mounted in the center of the machine ensure ideal weight distribution.
• Flexible adjustment of the extra-large slewing angles and speed of the front-loading conveyor ensure efficient material loading.
• The state-of-the-art machine management system, LEVEL PRO PLUS leveling system and intuitive operating concept enable efficient one-man operation.
FEATURES
HIGH-PRECISION, INTUITIVE LEVELING WITH LEVEL PRO PLUS
• Simple, intuitive operation
• Fully integrated into the machine control system
• Milling depth measurement via displacement sensors installed in the hydraulic side plate cylinders
• Hydraulic scanning sensor in front of the milling drum

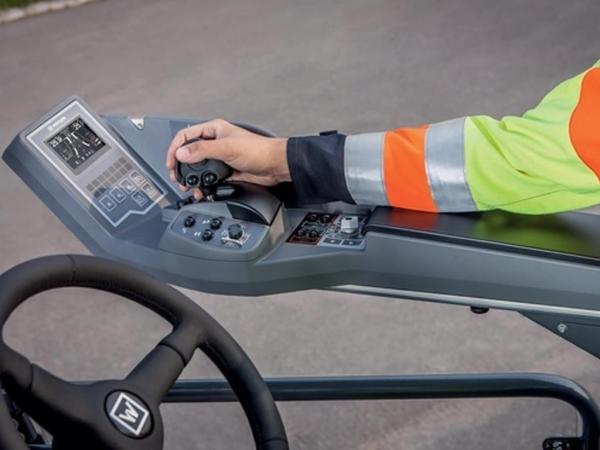

EFFICIENT MULTIFUNCTIONAL ARMREST
• Ergonomically designed multifunctional armrest with color control screen
• Scraper position displayed on the control screen
• Job data displayed on the control panel
• User-programmable favorites button
PERFECT VISIBILITY FOR HIGH-PRECISION WORK
• Variably adjustable weather canopy
• High-quality camera / monitor system with up to five cameras for viewing important working areas

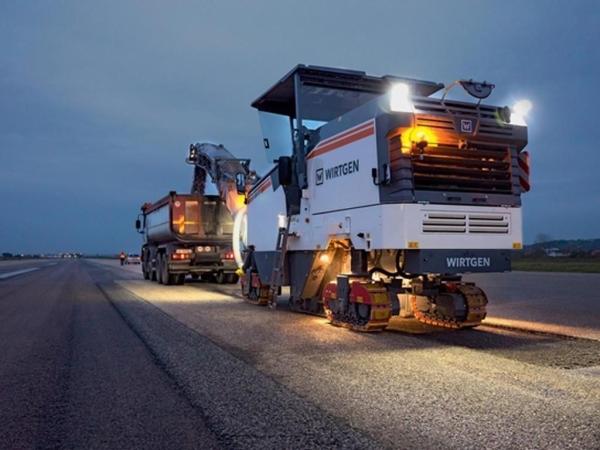

• Optimized headlight arrangement and optional LED headlights for maximum visibility at night

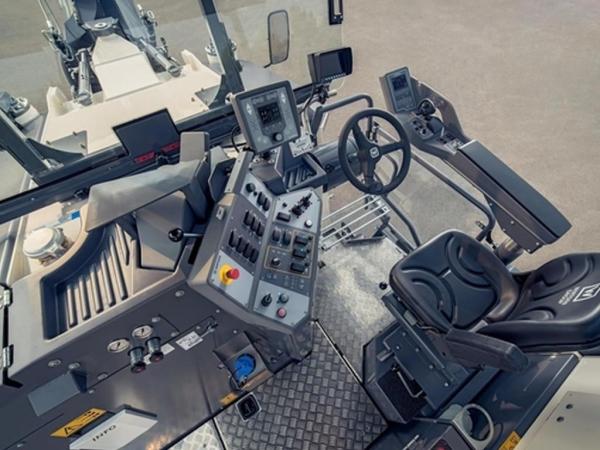

COMFORTABLE OPERATOR’S CABIN
• Ergonomically designed comfort operator’s seat including seat heater
• Easy access with “welcome and go home” lighting
• Operator’s cabin features wind and weather protection elements
• Additional controls for the ground crew
FAST MANEUVERING WITH HIGH TRACTION
• ISC electronic track chain control for low track pad wear and optimum traction
• Up to 4.7 mph (7.5 km/h) travel speed
• Automatic parallel machine alignment through optimized PTS
• “Stop-and-go” display for the truck driver

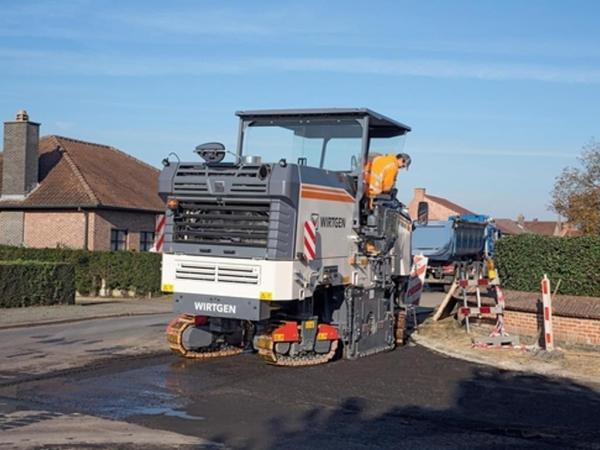

LIGHT AND MANEUVERABLE MACHINE
• Large steering angles for tight turning radii
• High-precision steering via joystick in multifunctional armrest
• Extremely light for this weight class with variable ballasting weight of up to 1,984 lbs (900 kg)
• Additional height adjustment in increments of 0.04 in or 0.2 in (1 mm or 5 mm)
MAXIMUM EFFICIENCY FOR TREMENDOUS PRODUCTIVITY
• Impressive engine performance with high maximum torque
• Three different milling drum speeds
• Battery-powered hydraulic unit with additional functions
• Automated water injection into the milling drum unit
• Automatic WIDRIVE functions significantly reduce the need for operator intervention
LOW ENVIRONMENTAL EMISSIONS
• Engine versions that meet stringent US EPA Tier 4f emissions standards
• Alternative engine station with additional exhaust gas purification via diesel particulate filter
• Minimized noise emissions through effective noise insulation and controlled fan speed
IMPRESSIVE MILLING PERFORMANCE IN A VARIETY OF APPLICATIONS
• Milling drum rotation device and hydraulic pick ejector for fast pick changes
• Hydraulically lifting side plates with proactive floating position to automatically lift on loose ground
• Scraper raises automatically via overload sensor
• Comes standard with extremely wear-resistant HT22 quick-change tool-holder system
• FCS complete unit FB1500 with easily exchangeable milling drums FB600, FB900, FB1200, and FB1500
• Alternative milling width of 5 ft 11 in (1.8 m)

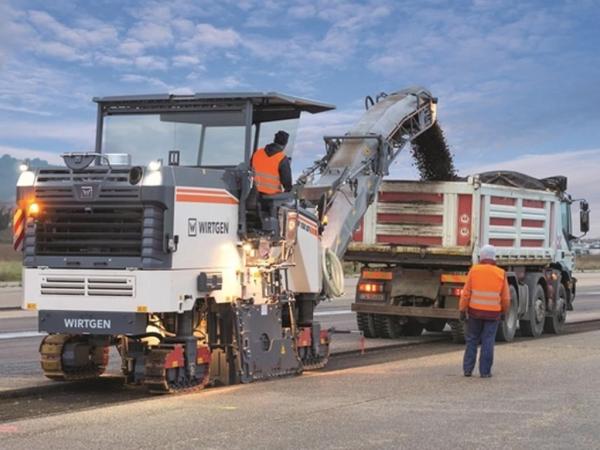

HIGH LOADING VOLUME WITH MAXIMUM FLEXIBILITY
• Wide conveyor swing angles of 60° to the right and left
• Two conveyor swing speeds for high-precision loading of the milled material
• VCS extraction system with optimized suction channel for minimum cleaning effort
• Hydraulic folding conveyor for quick folding during operation on site
• Quick-change coupling for easy mounting and removal of the discharge conveyor
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Specifications
- Additional Weight Operator And Tools - 5 Pick Containers: 276 lbs (125 kg)
- Additional Weight Operator And Tools - Machine Operator: 165 lbs (75 kg)
- Additional Weight Operator And Tools - Vehicle Tool Kit: 66 lbs (30 kg)
- Additional Weight Optional Milling Drum Units Instead Of Standard - Milling drum housing FB1500 FCS: 838 lbs (380 kg)
- Additional Weight Optional Milling Drum Units Instead Of Standard - Milling drum housing FB1500 FCS-L: 595 lbs (270 kg)
- Additional Weight Optional Milling Drum Units Instead Of Standard - Milling drum housing FB1800 FCS-L: 1,764 lbs (800 kg)
- Additional Weight Optional Milling Drums Instead Of Standard - FB1500 FCS milling drum, HT22 LA15 with 136 picks: 44 lbs (20 kg)
- Additional Weight Optional Milling Drums Instead Of Standard - FCS milling drum FB1500, HT22 LA18 with 118 picks: -154 lbs (-70 kg)
- Additional Weight Optional Milling Drums Instead Of Standard - FCS milling drum FB1500, HT22 LA25 with 102 picks: 882 lbs (-400 kg)
- Additional Weight Optional Milling Drums Instead Of Standard - FCS milling drum FB1500, HT22 LA8 with 210 picks: 838 lbs (380 kg)
- Additional Weight Optional Milling Drums Instead Of Standard - FCS milling drum FB1500, HT5 LA6X2 with 512 picks: 992 lbs (450 kg)
- Additional Weight Optional Milling Drums Instead Of Standard - FCS milling drum FB1800, HT22 LA18 with 135 picks: 419 lbs (190 kg)
- Driving Performance - Max. Milling Speed: 0 – 131 ft/min (0 – 40 m/min) (1.5 mph (2.4 km/h))
- Driving Performance - Max. Transport Speed : 0 – 410 ft/min (0 – 125 m/min) (4.7 mph (7.5 km/h))
- Electrical System - Power Supply: 24 V
- Engine - Cooling: Water
- Engine - Displacement: 2.4 gal/h (8.9 l)
- Engine - Emission Standards: US EPA tier 4f
- Engine - Fuel Consumption at Rated Power | at a mixture of job site operations: 19.8 gph (75 l/h) | 7.9 gph (30 l/h)
- Engine - Manufacturer: CUMMINS
- Engine - Maximum power at 1,900 rpm: 298 kW / 400 hp / 405 PS
- Engine - Number of Cylinders: 6
- Engine - Operating power at 1,600 rpm: 270 kW / 362 hp / 367 PS
- Engine - Rated power at 2,100 rpm: 283 kW / 380 hp / 385 PS
- Engine - Sound power level in accordance with EN 500-2, engine | operator’s platform: ≤ 105 dB(A) | ≥ 83 dB(A)
- Engine - Type: QSL 9
- Loading Of Milled Material - Belt Width of Discharge Conveyor: 2 ft (600 mm)
- Loading Of Milled Material - Belt Width of Primary Conveyor: 2 ft 2 in (650 mm)
- Loading Of Milled Material - Theoretical Capacity of Discharge Conveyor: 305 yd³/h (233 m³/h)
- Milling Drum - Cutting Diameter: 3 ft 3 in (980 mm)
- Milling Drum - Milling Depth*1: 0 – 13 in (0 – 330 mm)
- Milling Drum - Milling Width: 4 ft 11 in (1,500 mm)
- Milling Drum - NOTE: *1 = The maximum milling depth may deviate from the value indicated due to tolerances and wear.
- Milling Drum - Optional Milling Width: 5 ft 11 in (1,800 mm)
- Optional Additional Equipment - Additional weight at the rear: 1,984 lbs (900 kg)
- Optional Additional Equipment - Hydraulic short folding conveyor instead of standard: -99 lbs (-45 kg)
- Optional Additional Equipment - Leveling boom: 551 lbs (250 kg)
- Optional Additional Equipment - VCS Extraction System: 276 lbs (125 kg)
- Optional Additional Equipment - Weather canopy instead of standard: 992 lbs (450 kg)
- Tank Capabilities - AdBlue/DEF: 13.2 gal (50 l)
- Tank Capabilities - Fuel Tank: 214 gal (810 l)
- Tank Capabilities - Hydraulic Oil: 31.7 gal (120 l)
- Tank Capabilities - Water: 594.4 gal (2,250 l)
- Track Units - :
- Track Units - Track Chains front/back (L x W x H): 4 ft 4 in x 10 in x 22 in (1,330 x 260 x 550 mm)
- Weight Of Standard Machine - Empty weight of Machine without Fluids: 42,550 lbs (19,300 kg)
- Weight Of Standard Machine - Maximum Operating Weight (full tanks, full range of equipment): 55,557 lbs (25,200 kg)
- Weight Of Standard Machine - NOTE: *2 = Machine weight, half-full tanks, vehicle tool kits, machine operator, excluding optional equipment
- Weight Of Standard Machine - Operating Weight CE*2: 45,966 lbs (20,850 kg)
- Weight Of Tank Contents - AdBlue/DEF 9.2 lbs/gal (1.1 kg/l): 121 lbs (55 kg)
- Weight Of Tank Contents - Fuel 6.9 lbs/gal (0.83 kg/l): 1,477 lbs (670 kg)
- Weight Of Tank Contents - Water: 4,960 lbs (2,250 kg)
